One opening conceals seven linked decisions: room, orientation, dimensions, shading, glass, frame and privacy treatment. For effective home design in Saudi Arabia, approve glazing room by room and orientation by orientation, not as a facade-wide glass percentage.
How should glazing shape home design in Saudi Arabia for a Riyadh villa?
Glazing should balance useful daylight, cooling exposure, glare, views, privacy and cleaning before elevations or facade packages are released.
Which Riyadh villa rooms benefit most from larger windows?
- Family living rooms and majlis spaces: consider larger openings where courtyards, screens or gardens protect sightlines.
- Bedrooms and kitchens: coordinate windows with privacy, occupancy times, worktops and furniture walls.
- Stairs and circulation: use controlled openings that provide daylight without severe glare.
- Bathrooms and service rooms: prioritise privacy and ventilation. The U.S. Environmental Protection Agency recommends correcting condensation and damp spots promptly to help prevent mould growth.
Why must each Riyadh villa elevation have a separate glazing strategy?
Each elevation receives different sun, street exposure and shading from walls, neighbouring villas and landscape. Appearance, environmental performance and privacy therefore require separate checks. The next decision is the size and position of each opening.
How large should windows be in a modern Saudi house design?
Window size should follow room depth, orientation, use and external shading rather than a universal glass-to-wall ratio. A larger opening helps only when daylight reaches occupied areas without persistent glare, excessive perimeter heat or unacceptable views into family spaces.
How do window-head and sill positions affect daylight in a Riyadh villa?
A higher window head can carry daylight deeper into a room without extending glass to floor level. Sill height should protect privacy, furniture and the required view. Coordinate openings with ceilings, television walls, headboards, kitchen joinery and curtain pockets before approving facade symmetry.
| Room condition | Opening response |
|---|---|
| Deep living room | Raise the head and assess daylight at the rear seating area. |
| Bedroom | Protect the headboard wall and block direct street sightlines. |
| Kitchen | Set the sill around counters, splashbacks and storage. |
When does a large Riyadh villa window create glare instead of useful daylight?
Glare occurs when direct sun or bright sky enters the viewing field, particularly beside a television, dining seat or dressing mirror. Test true orientation, neighbouring buildings, room geometry, finishes and intended screen positions. Weather inputs also need scrutiny: a study catalogued by Climate.OneBuilding.Org questioned the reliability of available simulation datasets across eight European locations under a 2060 scenario, but that research does not validate a Riyadh weather file.
Confirm project-specific daylight and cooling calculations, then design external shading before selecting the glass.
External shading should be designed before Riyadh villa glass is specified
Fix external shading first because stopping direct sun outside differs from filtering solar energy through glass.
Which shading device suits each Riyadh villa orientation?
- South-facing openings: assess horizontal overhangs or balconies against the required occupied hours.
- East and west-facing openings: assess vertical fins, deep reveals or perforated screens because low-angle sun can pass beneath shallow overhangs.
- North-facing openings: avoid unnecessary shading that removes useful daylight, while retaining screens where privacy requires them.
Boundary walls and neighbouring buildings can alter actual exposure. Screens must preserve views and cleaning access, while horizontal ledges need drainage because exposed surfaces collect dust.

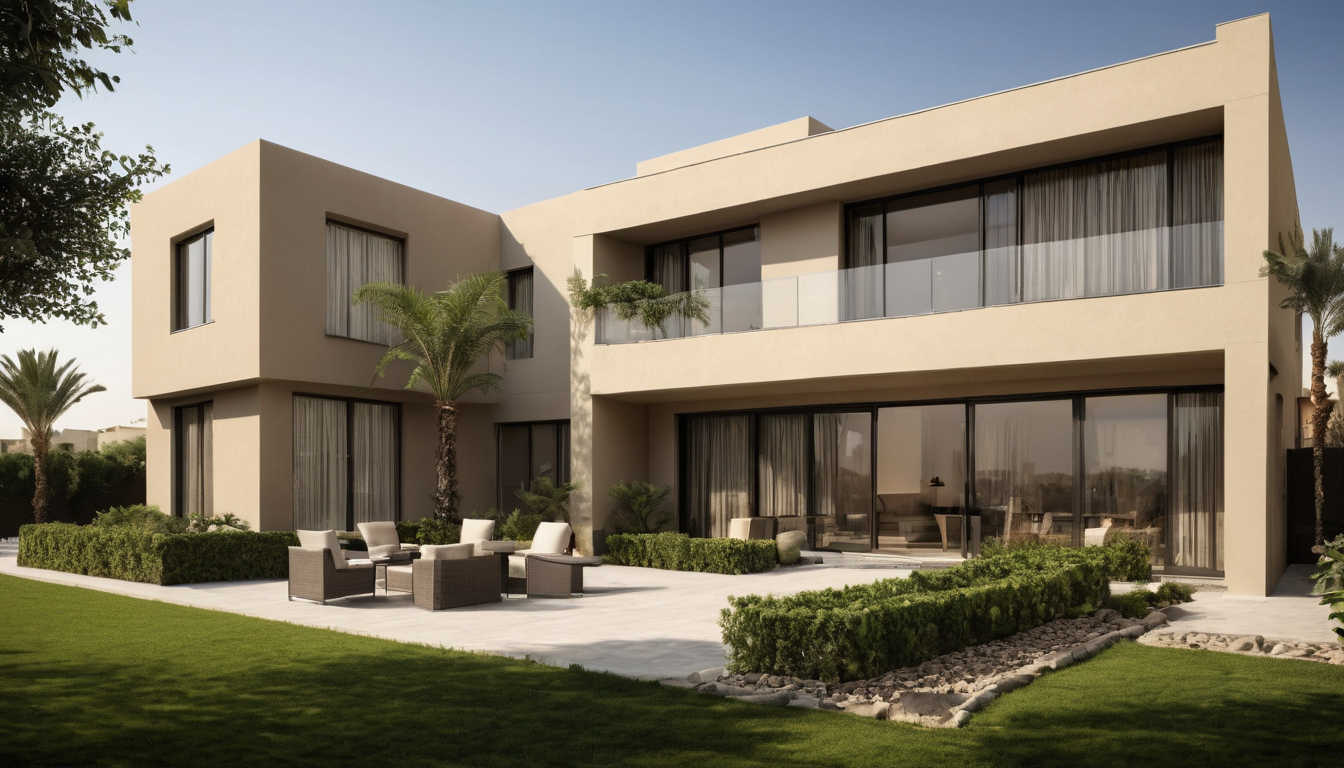

External shading should be designed before Riyadh villa glass is specified shown with floor, wall, and fixture relationships visible.
How should shading depth be calculated for a Riyadh villa window?
- Confirm true orientation, window dimensions and reveal depth.
- Define the occupied dates and hours when direct sun should be blocked.
- Model solar altitude and azimuth using a verified Riyadh weather source.
- Coordinate projections with structure, waterproofing and maintenance access.
Once the geometry is fixed, compare the performance of the complete glazing assembly.
Which glazing specifications matter most for a Saudi villa design?
Compare complete glazing systems, not labels such as double glass, tinted glass or low-E.
What do U-value, SHGC and visible light transmission mean for Riyadh villa glazing?
| Metric | Owner meaning | Required evidence | Common misunderstanding |
|---|---|---|---|
| Whole-window U-value | Heat transfer through glass, spacer and frame | Report for the complete unit | A glass-only value represents the window |
| SHGC | Solar heat admitted through the assembly | Certified value for the proposed build-up | Lower is automatically better everywhere |
| Visible light transmission | Daylight passing through the glass | Product-specific spectral data | Dark glass always prevents glare |
| Coating and build-up | Panes, cavity, coating surface, gas and spacer | Exact insulated-glass schedule | All low-E products look and perform alike |
| Frame and leakage | Conductivity, draughts and dust entry | Whole-window and infiltration reports | Good glass compensates for a weak frame |
The architect must confirm the applicable Saudi Building Code edition, climate zone and compliance method. Typical meteorological years process solar radiation and other weather variables for energy modelling, but modelled solar data can affect design accuracy. The same research catalogue reports European future scenarios in which heating demand fell by 38 to 57 percent and cooling demand rose by 99 to 380 percent, depending on location; those figures are not Riyadh projections. A 2025 paper also reported an extreme meteorological year method bounding performance within ±5 kWh/m²-y, without identifying Riyadh as a tested climate.
How should low-E coatings, tints and reflective glass be compared?
Compare exact build-ups outdoors and indoors, by day and night. Request evidence for coating position, colour, reflectivity, thermal stress and sealant compatibility. Building materials can also be indoor sources of volatile organic compounds, according to the U.S. Environmental Protection Agency, so compatible low-emission sealants and finishes merit review.
Why must the frame and installation be included in the glazing decision?
Thermally broken frames, suitable spacers, perimeter insulation, drainage and compatible sealants protect specified performance. Operable units also require air and water criteria plus installation inspections. Technical performance must then be tested against real privacy conditions.

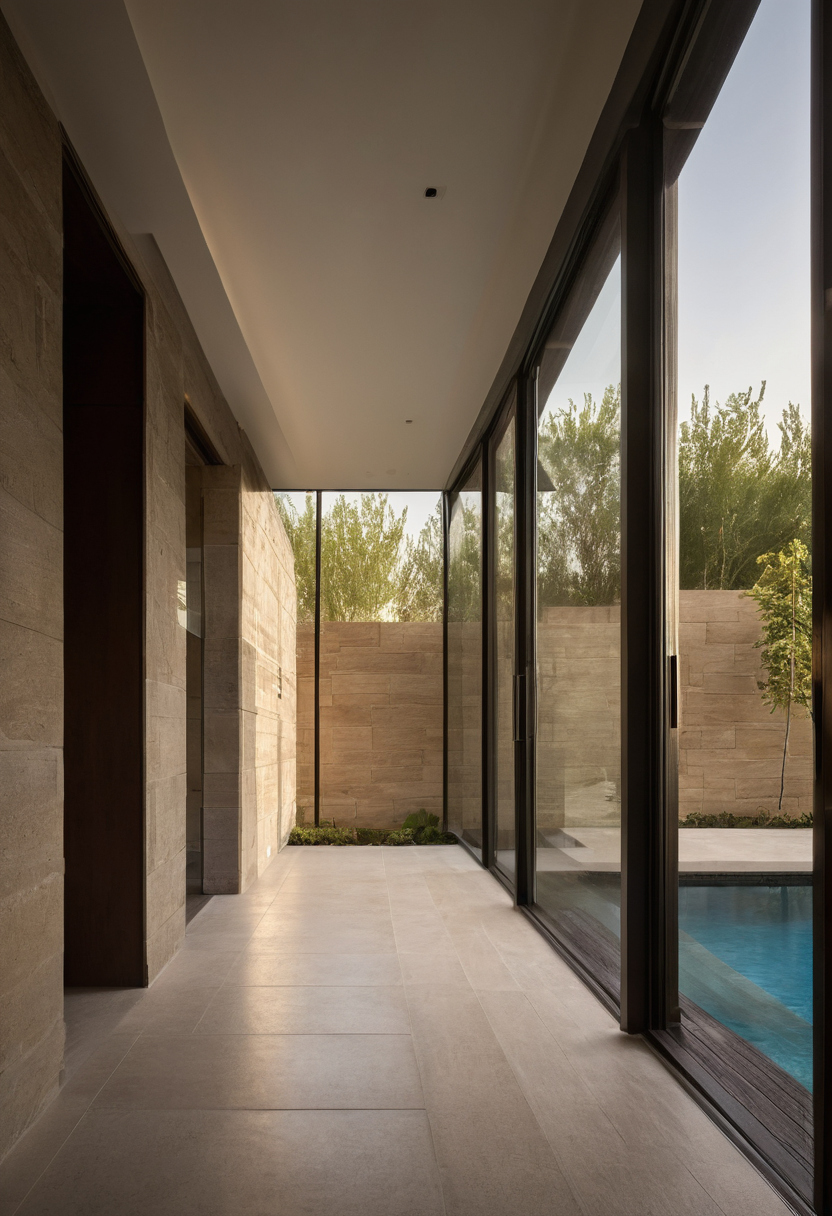

Which glazing specifications matter most for a Saudi villa design shown as a planning reference for layout, scale, and material decisions.
Riyadh villa privacy depends on sightlines, lighting and opening positions
Privacy glass alone cannot secure a villa because reflective and tinted products change appearance when exterior and interior light levels reverse. Reliable protection combines sill heights, screens, landscape, curtains and privacy zoning for family, majlis and service circulation.

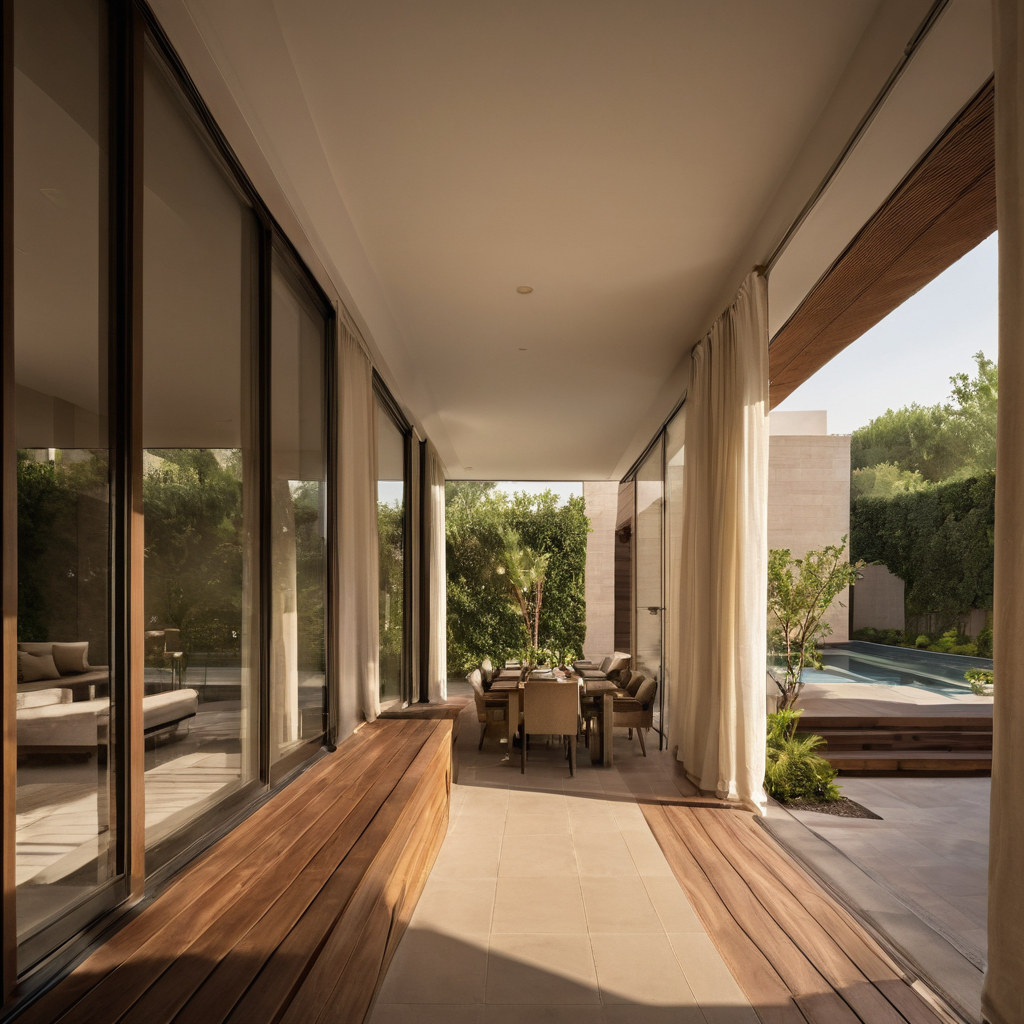

Riyadh villa privacy depends on sightlines, lighting and opening positions shown with finish, fixture, and clearance relationships visible.
Does reflective or tinted glass provide nighttime privacy in a Riyadh villa?
Reflective glass appears more private when daylight outside is stronger than light inside. After sunset, illuminated interiors may become visible from streets, gardens and neighbouring upper floors. Tint reduces brightness but does not guarantee concealment. Frosted glass obscures detail but may reveal nearby silhouettes, while switchable glass still requires testing for shadows.
Inspect a mock-up from likely sightlines under daytime sun, interior lighting and landscape lighting. Bedrooms, family rooms and double-height spaces may still need curtains, blinds or fixed screens.
Where should operable windows be placed in a Riyadh villa?
Operable sections should permit ventilation without creating avoidable dust, noise, security or air-conditioning conflicts. Coordinate insect screens, restrictors, handles, curtains, furniture and cleaning access. Verify Saudi requirements for ventilation, guards, safety glazing and emergency egress before fixing opening types.
What must be approved before ordering a Riyadh villa facade package?
Do not release a facade package from elevation drawings alone. Use a recorded fabrication gate.
Which glazing documents should a Riyadh villa owner request?
- Approve a schedule identifying room, orientation, dimensions, opening type, glass, frame, shading and privacy treatment.
- Verify calculations, laboratory reports, shop drawings, warranties and cleaning guidance.
- Approve physical samples and acceptance limits for colour, reflectivity and distortion.
- Resolve structure, waterproofing, drainage, air-conditioning and interior-finish interfaces.
- Record substitutions, replacement availability, lead times and inspection responsibilities.
Owners can compare Riyadh residential design proposals by checking whether glazing analysis, facade coordination, mock-ups and site inspections are included.

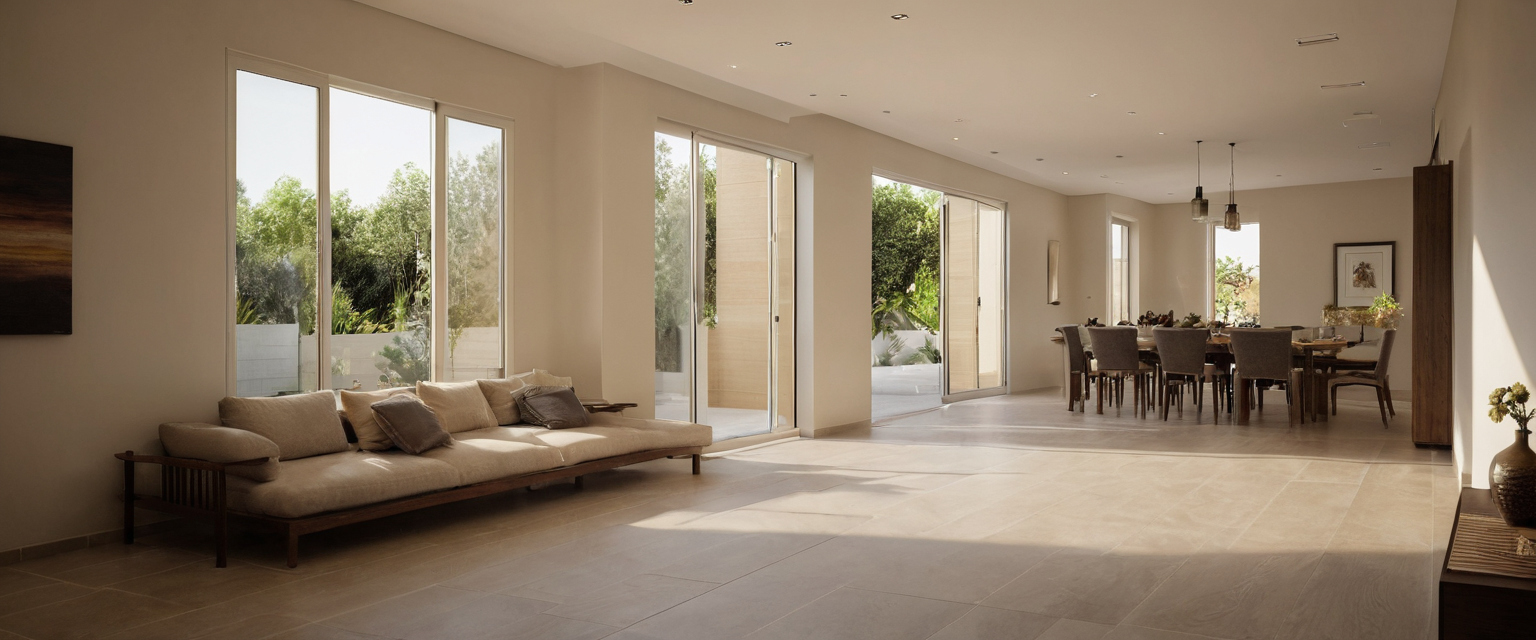

What must be approved before ordering a Riyadh villa facade package shown with floor, wall, and fixture relationships visible.
What should a Riyadh villa glazing mock-up prove?
The mock-up should reproduce the intended orientation and interior lighting. Inspect colour, distortion, privacy, glare, seals, hardware, drainage and cleaning access in bright daylight and after dark. Where LED lighting is specified, reproduce its actual output and colour rather than using temporary lamps. ENERGY STAR states that qualified LED lighting uses at least 75 percent less energy and lasts up to 25 times longer than incandescent lighting.
Which facade substitutions create the greatest risk after award?
Changes to coatings, pane thicknesses, cavities, spacers, thermal breaks, hardware or sealants require recalculation and written approval. Release fabrication only after the design team confirms performance, matching, warranties and inspection duties.
Frequently asked questions
Is double glazing enough for a villa in Riyadh, or is a low-E coating also needed?
Double glazing describes the pane arrangement, not complete solar performance. Compare the exact low-E coating, SHGC, U-value, frame and shading for each orientation.
Which Riyadh villa orientation usually requires the strongest solar-control strategy?
East and west elevations often need particular attention because low-angle sun is difficult to block, but neighbouring buildings and project geometry can change the result.
